DF100BA80 다이오드 모듈 ( 800V, 100A )

이번에 소개 드릴 제품은 산렉스 (Sanrex), 800V, 다이오드 모듈 입니다.







제품명 : Diode Module

모델명 : DF100BA80

용   량 : 800V, 100A

제조사 : Sanrex



아래 제품을 판매 하고 있습니다. 필요 하신 분은 문의 전화 주세요

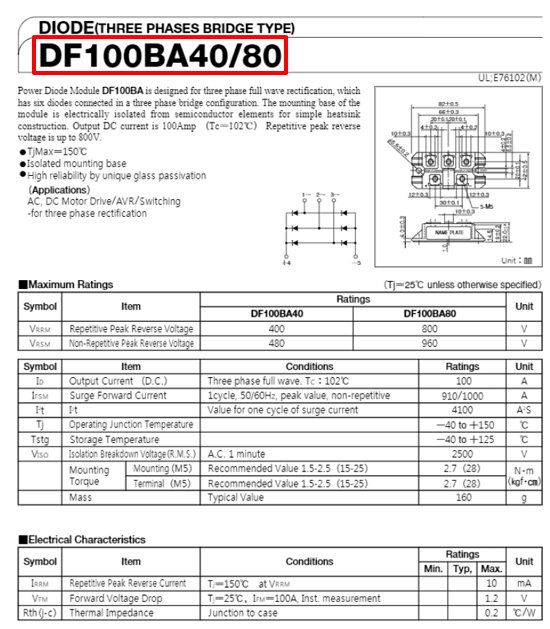

Description :


Power Diode Module DF100BA is designed for three phase full wave rectification, which
has six diodes connected in a three phase bridge configuration. The mounting base of the
module is electrically isolated from semiconductor elements for simple heatsink
construction. Output DC current is 100Amp (Tc=102℃) Repetitive peak reverse
voltage is up to 800V.

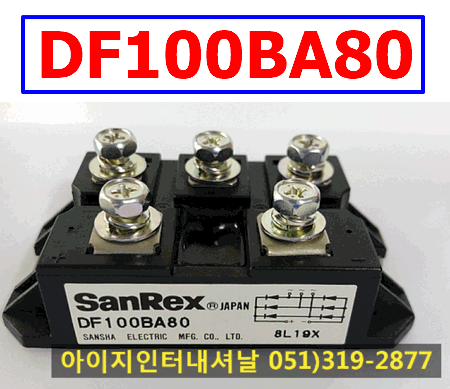

제품 이미지





판매중인 목록

DF100BA40 (100A, 400V)

DF100BA80 (100A, 800V)







당사는 다양한 전력반도체를 판매 중입니다. 다이오드 모듈, IGBT 모듈, GTO 모듈 등을 판매하오니



많은 문의 바랍니다.
