이번에 소개 드릴 제품은 500V, Fuji 휴즈 입니다.
제품명 : Power Fuse
모델명 : S2E12CS5F-600
용 량 : 500V, 600A
제조사 : Fuji Electric
아래 제품을 판매 하고 있습니다. 필요 하신 분은 문의 전화 주세요

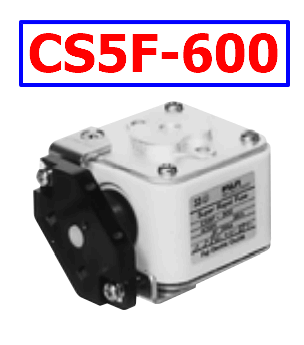

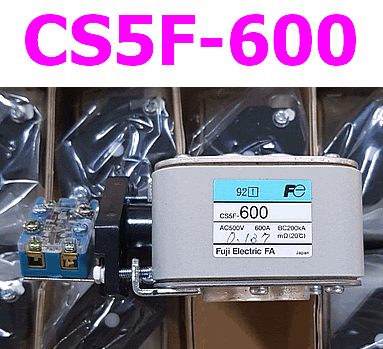

제품 이미지
판매중인 품목
CS1F-4700 CS2F-2000 CS2F-3000
CS5F-40 CS5F-75 CS5F-100
CS5F-150 CS5F-200 CS5F-250
CS5F-300 CS5F-350 CS5F-400
CS5F-450 CS5F-500 CS5F-600
CS5F-800 CS5F-1000 CS5F-1000-P
CS5F-1200 CS5F-1200-P CS5F-1500
CS8F-1000 CS8F-1200 CS8F-1500
CS10F-80 CS10F-100 CS10F-150
CS10F-200 CS10F-250 CS10F-300
CS10F-350 CS10F-400 CS10F-500
CS10F-560 CS10F-630 CS10F-750
CS10F-800-P CS10F-1000-P CS10F-1250-P
CS10F-1500-C CS15F-450 CS15F-630
CS15F-900-P CS15F-1250-P
제품특징 :
• The total clearing I2t is small and the semiconductor circuit is completely protected.
• Since the peak arc voltage at the time of interruption is low damage to other equipment does not occur.
• High interrupting capacity of 200kA at 1000V AC
• The CS type is provided with a blown fuse indicator. An alarm contact block (1NO or 1NC) can also be attached
상세내용 :
The FUJI BLC, CR and CS types are extremely reliable fuses which have been specially developed to provide protection for silicon diodes and thyristors and are suitable for inverters using semiconductors or transformersrectifiers. FUJI Super Rapid Fuses are designed with a very small total I2t value which gives them a high speed interrupting action in the face of abnormal currents. In addition the arc voltage generated at the time of interruption has a low value so that faults will not influence related electric machinery and equipment.
I.G 인터내셔날은 전력반도체 전문 업체로써 GTO, IGBT, SCR을 취급하며
20년 이상을 꾸준히 성장한 회사입니다. 연락주시면 친절하게 설명해드리겠습니다.
상호 : 아이지인터내셔날 , ☎ 고객센터: 051) 319-2970,2877
( 휴대폰 010-3582-2743 최인영 대표 )
